Type A 618
Adhesive tapes based on fabric or foils from 3 to 25 mm width can accurately be cut and dispensed with this unit. The length of tape can be set from 9 to 61mm by scale and rotaryknob. The parts are tacked on the rotary table and can easily be picked up from there.
Adhesive tapes based on fabric or foils from 3 to 25 mm width can accurately be cut and dispensed with this unit. The length of tape can be set from 9 to 61mm by scale and rotaryknob. The parts are tacked on the rotary table and can easily be picked up from there.
Technical Data:
Adjustment of length mechanical
Tape WidthMin. 3mm
Max. 20mm
Tape LengthMin. 9mm
Max. 61mm
Max. Reel Diameter 150mm
Measures Depth 250mm, Width150mm, Height 120mm
Weight2,1 kg
Adjustment of length mechanical
Tape Width
Min. 3mmMax. 20mmTape Length
Min. 9mmMax. 61mmMax. Reel Diameter 150mm
Measures Depth 250mm, Width150mm, Height 120mm
Weight
2,1 kg Type A 690/A691 A692/A693
Length of tape programmable in
mm steps. The device is equipped
in series with a photo-electric
cutting device. The device A692
has available 3 programmable
lengths.
A691/A693 for slim tapes
Length of tape programmable in
mm steps. The device is equipped
in series with a photo-electric
cutting device. The device A692
has available 3 programmable
lengths.
A691/A693 for slim tapes
Technical Data:
Adjustment of length Keyboard
Tape WidthMin. 8mm/5mm
Max. 50mm
Tape LengthMin. 20mm
Max. 999mm
Max. Reel Diameter 160mm
Measures:Depth 210mm, Width 135mm, Height 150mm
Adjustment of length Keyboard
Tape Width
Min. 8mm/5mmMax. 50mmTape Length
Min. 20mmMax. 999mmMax. Reel Diameter 160mm
Measures:Depth 210mm, Width 135mm, Height 150mm
Type A 695/A696 A697/A698
Length of tape is programmable in
mm steps. The device is equipped
in series with a photo-electric
cutting device. The device A697
has 3 programmable lengths.
A696/A698 for slim tapes
Length of tape is programmable in
mm steps. The device is equipped
in series with a photo-electric
cutting device. The device A697
has 3 programmable lengths.
A696/A698 for slim tapes
Technical Data:
Adjustment of length Keyboard
Tape WidthMin. 8mm/5mm
Max. 50mm
Tape LengthMin. 30mm
Max. 999mm
Max. Reel Diameter 160mm
Measures:Depth 210mm, Width 135mm, Height 150mm
Adjustment of length Keyboard
Tape Width
Min. 8mm/5mmMax. 50mmTape Length
Min. 30mmMax. 999mmMax. Reel Diameter 160mm
Measures:Depth 210mm, Width 135mm, Height 150mm
Type A 800
Length of tape is programmable
in mm steps.
The device is in series equipped with a photo-electric cutting device, with two photocells.
Tape jam recognition.
No reel core needed, two tapes
can be processed simultaneously. With tape centering device.
Length of tape is programmable
in mm steps.
The device is in series equipped with a photo-electric cutting device, with two photocells.
Tape jam recognition.
No reel core needed, two tapes
can be processed simultaneously. With tape centering device.
Technical Data:
Adjustment of length Keyboard
Tape WidthMin. 6mm
Max. 50mm
Tape LengthMin. 5mm
Max. 999mm
Max. Reel Diameter 300mm
Measures: Depth 215mm, Width 115mm, Height 140mm
Weight 2,8kg
Adjustment of length Keyboard
Tape Width
Min. 6mmMax. 50mmTape Length
Min. 5mmMax. 999mmMax. Reel Diameter 300mm
Measures: Depth 215mm, Width 115mm, Height 140mm
Weight
2,8kg Tape Dispenser Modified
A612.80-6
Industrial tape dispenser with
electric actuation for cold adhesive tapes from 15 to 80 mm width.
Length is adjustable in mm steps
from 30 - 999 mm.
With automatic release when the
cut tape is removed.
Industrial tape dispenser with
electric actuation for cold adhesive tapes from 15 to 80 mm width.
Length is adjustable in mm steps
from 30 - 999 mm.
With automatic release when the
cut tape is removed.
Technical Data:
Adjustment of Length: mechanic keyboard
Tape WidthMin. 15mm
Max. 80mm
Tap LengthMin. 60mm
Max. 999mm
Max. Reel Diameter 200mm
Measures: Depth 190mm, Width 250mm, Height 295mm
Gewicht 11kg
Adjustment of Length: mechanic keyboard
Tape Width
Min. 15mmMax. 80mmTap Length
Min. 60mmMax. 999mmMax. Reel Diameter 200mm
Measures: Depth 190mm, Width 250mm, Height 295mm
Gewicht 11kg
A612.150/250
Industrial tape dispenser with
electric actuation for cold adhesive tapes from 15 to 150/250 mm width
Length is adjustable in mm steps
from 30 -9999 mm. With automatic
release when the cut tape is
removed or permanent motion.
Industrial tape dispenser with
electric actuation for cold adhesive tapes from 15 to 150/250 mm width
Length is adjustable in mm steps
from 30 -9999 mm. With automatic
release when the cut tape is
removed or permanent motion.
Technical Data:
Adjustment of Length mechanic keyboard
Tape WidthMin. 15mm
Max. 150/250mm
Tape LengthMin. 60mm
Max. 9999mm
Max. Reel Diameter 200mm
Measures: Depth 250mm, Width 330mm, Height 295mm
Weight 16kg
Adjustment of Length mechanic keyboard
Tape Width
Min. 15mmMax. 150/250mmTape Length
Min. 60mmMax. 9999mmMax. Reel Diameter 200mm
Measures: Depth 250mm, Width 330mm, Height 295mm
Weight 16kg
A 808
Industrial tape dispenser with
electric actuation for adhesive
tapes based on textile, felt or
foil from 3 - 50 mm width.
Length of tape is adjustable
continuously from 20 - 200 mm.
Option: Pedal release.
Industrial tape dispenser with
electric actuation for adhesive
tapes based on textile, felt or
foil from 3 - 50 mm width.
Length of tape is adjustable
continuously from 20 - 200 mm.
Option: Pedal release.
Technical Data:
Adjustment of Length Potentiometer
Tape WidthMin. 3mm
Max. 50mm
Tape LengthMin. 20mm
Max. 200mm
Max. Reel Diameter 160mm
Measures: Depth 360mm, width 185mm, Height 290mm
Weight 12kg
Adjustment of Length Potentiometer
Tape Width
Min. 3mm Max. 50mmTape Length
Min. 20mmMax. 200mmMax. Reel Diameter 160mm
Measures: Depth 360mm, width 185mm, Height 290mm
Weight 12kg
A 416
Adhesive Tape dispenser,
electronical, with integrated
step-and-repeat device for
adhesive tapes from 15 - 75 mm
width and Lengths from 60 - 1300
mm
Adhesive Tape dispenser,
electronical, with integrated
step-and-repeat device for
adhesive tapes from 15 - 75 mm
width and Lengths from 60 - 1300
mm
Technical Data:
Adustment of Length Potentiometer
Tape WidthMin. 15mm
Max. 75mm
Tape LengthMin. 50mm
Max.1300mm
Max. Reel Diameter130mm
Measures: Depth 270mm, Width 160mm, Height 265mm
Weight 6kg
Adustment of Length Potentiometer
Tape Width
Min. 15mmMax. 75mmTape Length
Min. 50mmMax.1300mmMax. Reel Diameter130mm
Measures: Depth 270mm, Width 160mm, Height 265mm
Weight 6kg
A612.80-6
modified with spooling device for
the casting paper.
modified with spooling device for
the casting paper.

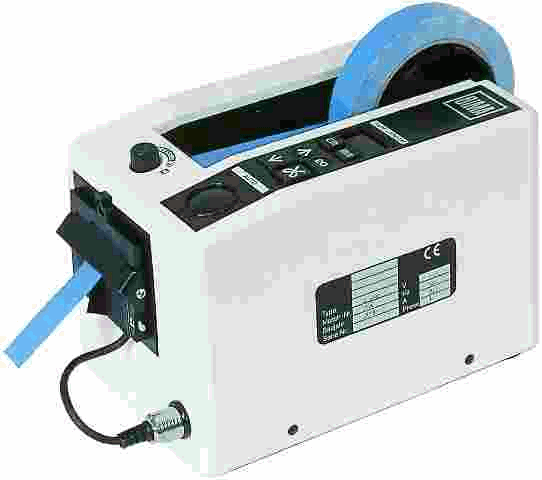

A695
Tape Dispenser A695 is
triggered with SPS, adhesive
tape inquiry by a photocell.
Cutting of adhesive tapes with
holder.
Tape Dispenser A695 is
triggered with SPS, adhesive
tape inquiry by a photocell.
Cutting of adhesive tapes with
holder.
A690
modified with spooling device for
the casting paper.
modified with spooling device for
the casting paper.
Type A 900 NEW
Length of tape is programmable in
mm steps. The device is in series
equipped with a photo-electric
cutting device, with two photocells.
Tape jam recognition.
No reel core needed, two tapes
can be processed simultaneously.
With tape centering device.
Length of tape is programmable in
mm steps. The device is in series
equipped with a photo-electric
cutting device, with two photocells.
Tape jam recognition.
No reel core needed, two tapes
can be processed simultaneously.
With tape centering device.
Technical Data:
Adjustment of length Keyboard
Tape WidthMin. 6mm
Max. 60mm
Tape LengthMin. 5mm
Max. 999mm
Max. Reel Diameter 300mm
Measures: Depth 215mm, Width 115mm, Height 140mm
Weight 2,8kg
Adjustment of length Keyboard
Tape Width
Min. 6mmMax. 60mmTape Length
Min. 5mmMax. 999mmMax. Reel Diameter 300mm
Measures: Depth 215mm, Width 115mm, Height 140mm
Weight
2,8kgAdhesive tapes are used for covering, fixing, protecting and proofing of a process
(eg sterilization, temperature).
For this field of application the adhesive tapes can be cut efficiently, exactly, ergonomically and
variably (continuously).
The devices are used in the automotive industry, electric- and electronical industry, medical industry lacquering- and packing industry.
(eg sterilization, temperature).
For this field of application the adhesive tapes can be cut efficiently, exactly, ergonomically and
variably (continuously).
The devices are used in the automotive industry, electric- and electronical industry, medical industry lacquering- and packing industry.
